8.3. Reflection and refraction

8.3.1. Refection and refraction at a surface

[1]:

from diffractio import degrees, mm, plt, sp, um, np
from diffractio.scalar_masks_X import Scalar_mask_X
from diffractio.scalar_masks_XZ import Scalar_mask_XZ
from diffractio.scalar_sources_X import Scalar_source_X

[2]:

x0 = np.linspace(-100 * um, 100 * um, 2048)
z0 = np.linspace(-100 * um, 100 * um, 2048)

wavelength = 5 * um
u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.gauss_beam(A=1, x0=0 * um, z0=100 * um, w0=15 * um, theta=0 * degrees)

u1 = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength, n_background=1)
u1.incident_field(u0)
u1.semi_plane(r0=(0 * um, 0 * um), refractive_index=1.5, angle=60 * degrees)

u1.draw_refractive_index()

$../../_images/source_examples_scalar_reflection_refraction_3_0.png$

[3]:

u1.WPM(verbose=False)

[4]:

u1.draw(kind="phase", draw_borders=True, percentage_intensity=0.01)

$../../_images/source_examples_scalar_reflection_refraction_5_0.png$

[5]:

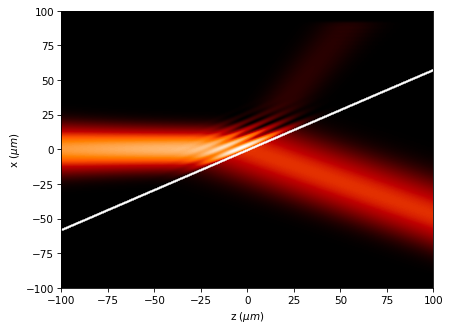

u1.draw(kind="intensity", logarithm=1e1, draw_borders=True)

$../../_images/source_examples_scalar_reflection_refraction_6_0.png$

8.3.2. Refraction

[24]:

x0 = np.linspace(-110 * um, 110 * um, 2048)
z0 = np.linspace(-110 * um, 110 * um, 2048)
wavelength = 1 * um
u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.gauss_beam(A=1, x0=30 * um, z0=150 * um, w0=40 * um, theta=0 * degrees)

u1 = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength)
u1.incident_field(u0)
u1.layer(r0=(50 * um, 0 * um), depth=80 * um, refractive_index=2, angle=45 * degrees)

u1.draw_refractive_index()

[25]:

u1.WPM(verbose=False)

[26]:

u1.draw(kind="intensity", draw_borders=True)

[27]:

%matplotlib widget

[28]:

u1.draw_profiles_interactive(kind="intensity", logarithm=False, normalize=False)

8.3.3. Total reflection

[11]:

%matplotlib inline

[12]:

x0 = np.linspace(-100 * um, 100 * um, 2048)
z0 = np.linspace(-100 * um, 100 * um, 2048)

wavelength = 5 * um
u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.gauss_beam(A=1, x0=0 * um, z0=100 * um, w0=15 * um, theta=0 * degrees)

u1 = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength, n_background=1.5)
u1.incident_field(u0)
u1.semi_plane(r0=(0 * um, 0 * um), refractive_index=1, angle=60 * degrees)

u1.draw_refractive_index()

$../../_images/source_examples_scalar_reflection_refraction_15_0.png$

$../../_images/source_examples_scalar_reflection_refraction_15_1.png$

[ ]:

u1.WPM(verbose=False)

No such comm: 160be808b2c94fb8a288511644ab0364

[ ]:

u1.draw(kind="phase", draw_borders=True, percentage_intensity=0.01)
plt.ylim(ymin=-60)
plt.xlim(xmax=75)

$../../_images/source_examples_scalar_reflection_refraction_17_0.png$

[ ]:

u1.draw(kind="intensity", logarithm=True, draw_borders=True)
plt.xlim(-50, 50)
plt.ylim(-30, 30)

$../../_images/source_examples_scalar_reflection_refraction_18_0.png$

8.3.4. Total reflection at a layer

[ ]:

x0 = np.linspace(-150 * um, 300 * um, 2048)
z0 = np.linspace(-150 * um, 500 * um, 2048)
wavelength = 1 * um
u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.gauss_beam(A=1, x0=-100 * um, z0=150 * um, w0=15 * um, theta=0 * degrees)

u1 = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength)
u1.incident_field(u0)
u1.layer(r0=(50 * um, 0 * um), depth=100 * um, refractive_index=1.5, angle=60 * degrees)
u1.draw_refractive_index()
u1.smooth_refractive_index(type_filter=2, pixels_filtering=3)

$../../_images/source_examples_scalar_reflection_refraction_20_0.png$

[ ]:

u1.BPM(verbose=False)
u1.draw(kind="intensity", logarithm=True, draw_borders=True)

$../../_images/source_examples_scalar_reflection_refraction_21_0.png$

[ ]:

u1.draw(kind="intensity", logarithm=True, draw_borders=False)
plt.xlim(-100, 0)
plt.ylim(-125, -65)

$../../_images/source_examples_scalar_reflection_refraction_22_0.png$

[ ]:

%matplotlib widget

[ ]:

u1.draw_profiles_interactive(kind="intensity", logarithm=False, normalize=False)
