15. Drawing XZ

from diffractio import plt, np, mm, degrees, um
from diffractio.scalar_sources_X import Scalar_source_X
from diffractio.scalar_fields_XZ import Scalar_field_XZ
from diffractio.scalar_masks_XZ import Scalar_mask_XZ
from diffractio.scalar_masks_X import Scalar_mask_X

x0 = np.linspace(-250 * um, 250 * um, 1024 * 2)
z0 = np.linspace(-0.1 * mm, 0.6 * mm, 1024 * 2)
wavelength = 10 * um

u0 = Scalar_source_X(x0, wavelength)
u0.plane_wave(A=1, theta=0 * degrees)

lens = Scalar_mask_XZ(x0, z0, wavelength, n_background=1, info="")
ipasa, conds = lens.aspheric_lens(
    r0=(0 * mm, 0 * mm),
    angle=(0 * degrees, (0 * mm, 0 * mm)),
    refractive_index=1.5,
    cx=(1 / (0.25 * mm), -1 / (0.25 * mm)),
    Qx=(0, 0),
    a2=(0, 1e-13),
    a3=(0, 0),
    a4=(0, 0),
    thickness=0.25 * mm,
    size=0.8 * mm,
)

lens.slit(r0=(0, 100 * um), aperture=400 * um, depth=75 * um, refractive_index=1 + 2j)

lens.draw_refractive_index(draw_borders=True, min_incr=0.01, colorbar_kind="vertical")

lens.incident_field(u0)

lens.clear_field()
lens.WPM(verbose=False, has_edges=False)

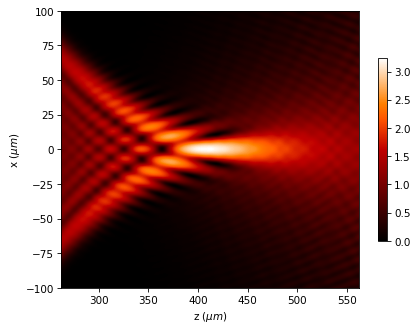

lens.draw(kind="intensity", logarithm=True, draw_borders=True, colorbar_kind="vertical")

Intensity_WPM = lens.intensity()

x_f, z_f = lens.search_focus()

x = -0.122 um, z = 412.262 um

ylim_max = 100 * um
zlim_max = 150 * um

lens.draw(kind="intensity", logarithm=True, colorbar_kind="vertical")
plt.ylim(-ylim_max, ylim_max)
plt.xlim(z_f - zlim_max, z_f + zlim_max)

lens.draw(kind="amplitude", colorbar_kind="vertical")
plt.ylim(-ylim_max, ylim_max)
plt.xlim(z_f - zlim_max, z_f + zlim_max)

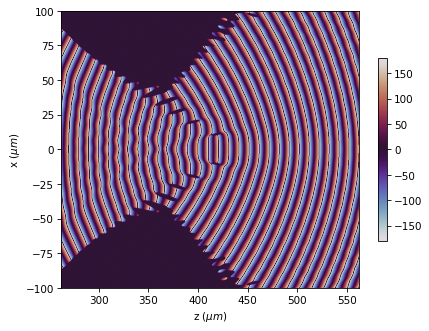

lens.draw(
    kind="phase",
    draw_borders=True,
    colorbar_kind="vertical",
    percentage_intensity=0.005,
)
plt.ylim(-ylim_max, ylim_max)
plt.xlim(z_f - zlim_max, z_f + zlim_max)

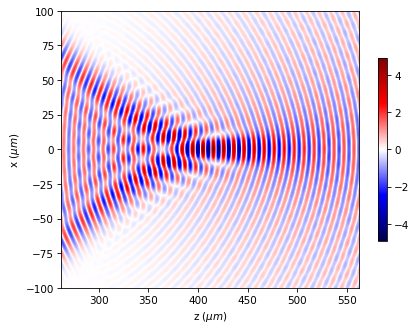

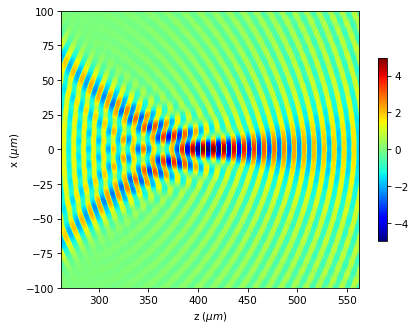

lens.draw(kind="real", colorbar_kind="vertical")
plt.ylim(-ylim_max, ylim_max)
plt.xlim(z_f - zlim_max, z_f + zlim_max)

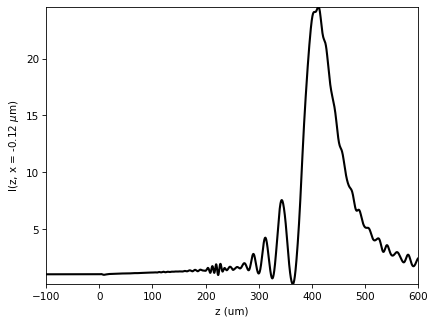

lens.profile_longitudinal(kind="intensity", logarithm=False, x0=x_f)

lens.profile_transversal(kind="intensity", logarithm=False, z0=z_f)
plt.xlim(-100, 100)

filename = "video_xz"

length = 200 * um
wavelength = 5 * um
period = 25 * um
z_talbot = 2 * period**2 / wavelength
x0 = np.linspace(-length / 2, length / 2, 256)
z0 = np.linspace(25 * um, 1 * z_talbot, 64)

u0 = Scalar_source_X(x0, wavelength)
u0.gauss_beam(A=1, x0=0 * um, z0=-100 * um, w0=100 * um, theta=0 * degrees)

t1 = Scalar_mask_X(x0, wavelength)
t1.ronchi_grating(x0=0 * um, period=10 * um, fill_factor=0.5)

u1 = Scalar_field_XZ(x=x0, z=z0, wavelength=wavelength)
u1.incident_field(t1 * u0)
u1.RS()

u1.draw(
    kind="intensity",
    logarithm=False,
    normalize="maximum",
    draw_borders=True,
    filename="",
)

seconds = 1.0
u1.video(
    kind="intensity",
    logarithm=True,
    normalize=False,
    time_video=10 * seconds,
    frames_reduction=5,
    filename="creating_video.mp4",
    dpi=100,
)

15.1. Visualizing fields using interactive tools

x0 = np.linspace(-25 * um, 25 * um, 256)
z0 = np.linspace(0 * um, 75 * um, 512)
wavelength = 2 * um
u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.plane_wave(A=1, theta=0 * degrees)
u1 = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength)
u1.incident_field(u0)
u1.mask_field(size_edge=5 * um)
u1.cylinder(r0=(0 * um, 25 * um), radius=25 * um, refractive_index=1.5)
u1.draw_refractive_index(scale="scaled")

u1.clear_field()
u1.WPM(verbose=False)

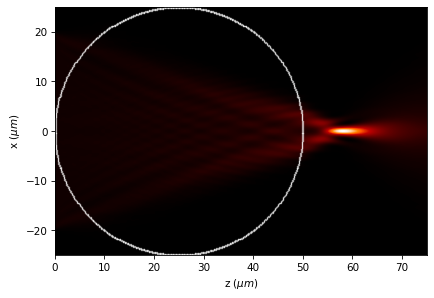

u1.draw(scale="scaled", draw_borders=True)

%matplotlib widget
u1.draw_profiles_interactive(kind='intensity')

%matplotlib inline
