9.10. Vector grating

[1]:

%load_ext autoreload
%autoreload 2

[ ]:

from diffractio import np
from diffractio import um, mm, degrees

from diffractio.scalar_masks_XY import Scalar_mask_XY
from diffractio.scalar_sources_XY import Scalar_source_XY

from diffractio.vector_sources_XY import Vector_source_XY
from diffractio.vector_masks_XY import Vector_mask_XY

from py_pol.jones_vector import Jones_vector
from py_pol.jones_matrix import Jones_matrix

[3]:

from matplotlib import rcParams
rcParams['figure.dpi']=300
rcParams['figure.figsize']=(8,6)

[4]:

num_data = 1024
length = 1*mm
x0 = np.linspace(-length / 2, length / 2, num_data)
y0 = np.linspace(-length / 2, length / 2, num_data)
wavelength = 2* um
period = 40*um
z_talbot = 2*period**2/wavelength

print(z_talbot)


t1 = Scalar_mask_XY(x0, y0, wavelength)
t1.ronchi_grating(x0=0, period=period, fill_factor=0.33, angle=0*degrees)
t1.draw(kind='intensity')


focal=2*mm
t_lens = Scalar_mask_XY(x0, y0, wavelength)
t_lens.lens(r0=(0 * um, 0 * um),
                radius=length/2,
                focal=focal)
t_lens.draw(kind='phase')

1600.0

../../_images/source_examples_vector_vector_grating_xy_4_1.png

../../_images/source_examples_vector_vector_grating_xy_4_2.png

[5]:

p0 = Jones_matrix()
p0.diattenuator_perfect(azimuth=0)

p1 = Jones_matrix()
p1.diattenuator_perfect(azimuth=90*degrees)


t_vector = Vector_mask_XY(x0,y0,wavelength)
t_vector.complementary_masks(mask=t1, pol_state_0=p0, pol_state_1=p1)

[6]:

u0 = Scalar_source_XY(x0, y0, wavelength)
u0.vortex_beam(A=1, r0=(0,0), w0=100*um, m=1)
u0.plane_wave(A=1)
u0.pupil()


E0 = Vector_source_XY(x0, y0, wavelength)
E0.constant_polarization(u=u0, v=(1, 1j))
E0.azimuthal_wave(u=u0, r0=(0, 0))
E0.radial_wave(u=u0, r0=(0, 0))
E0.draw('stokes')

../../_images/source_examples_vector_vector_grating_xy_6_0.png

[7]:

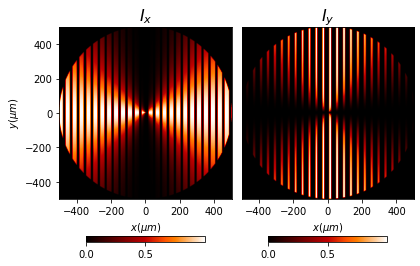

E1 = E0 * t_vector
#E1.apply_mask(t_lens)
E1.draw('intensities', logarithm=False)

../../_images/source_examples_vector_vector_grating_xy_7_0.png

[8]:

r_max = 3*period
xout = np.linspace(-r_max, r_max, 256)
yout = np.linspace(-r_max, r_max, 256)

E2 = E1.VCZT(z=z_talbot, xout=xout, yout=yout)
#E2 = E1.VRS(z=z_talbot)

[9]:

E2.draw('intensities_rz', logarithm=0)

../../_images/source_examples_vector_vector_grating_xy_9_0.png

[10]:

E2.draw('ellipses')

../../_images/source_examples_vector_vector_grating_xy_10_0.png

[11]:

E2.draw('intensities', logarithm=0)

../../_images/source_examples_vector_vector_grating_xy_11_0.png

[12]:

E_pypol = Jones_vector()
E_pypol.from_components(E2.Ex, E2.Ey)

[13]:

E_pypol.parameters.azimuth(draw=True)

The azimuth of E is (deg.):
The mean value is 90.00081478841173 +- 70.09890905890275

../../_images/source_examples_vector_vector_grating_xy_13_1.png

[14]:

E_pypol.parameters.ellipticity_angle(draw=True)

The ellipticity angle of E is (deg.):
The mean value is -0.006962825379217351 +- 13.423105823257753

../../_images/source_examples_vector_vector_grating_xy_14_1.png

[15]:

E_pypol.parameters.degree_circular_polarization(draw=True)

The degree of circular polarization of E is:
The mean value is -0.00021777353493727388 +- 0.4146457726861018

../../_images/source_examples_vector_vector_grating_xy_15_1.png

[16]:

E1 = E0 * t_vector
E2=E1.apply_mask(t_lens, new_field=True)
E2.draw('intensities', logarithm=False)

../../_images/source_examples_vector_vector_grating_xy_16_0.png

[17]:

xout = np.linspace(-150,150,512)
yout = np.linspace(-100,100,512)

[18]:

E3 = E2.VCZT(z=focal, xout=xout, yout=yout)

[19]:

E2.draw('intensities')

../../_images/source_examples_vector_vector_grating_xy_19_0.png

[20]:

E3.draw('fields', logarithm=1e0)

../../_images/source_examples_vector_vector_grating_xy_20_0.png

[21]:

E3.draw('intensities', logarithm=1e1)

../../_images/source_examples_vector_vector_grating_xy_21_0.png

[22]:

E3.draw('intensities%_rz', logarithm=1e1)

not good kind parameter in vector_fields_XY.draw()

[23]:

Ix,Iy,Iz = E3.get('fields', is_matrix=False)

[24]:

Ix.draw(logarithm=1e0, has_colorbar='vertical')
Iy.draw(logarithm=1e0, has_colorbar='vertical')
Iz.draw(logarithm=1e0, has_colorbar='vertical')

../../_images/source_examples_vector_vector_grating_xy_24_0.png

../../_images/source_examples_vector_vector_grating_xy_24_1.png

../../_images/source_examples_vector_vector_grating_xy_24_2.png

[25]:

E3.draw('stokes',logarithm=1e-1)

../../_images/source_examples_vector_vector_grating_xy_25_0.png

[26]:

E_pypol = Jones_vector()
E_pypol.from_components(E3.Ex, E3.Ey)

[27]:

E_pypol.parameters.azimuth(draw=True)

The azimuth of E is (deg.):
The mean value is 90.00224308917626 +- 52.50549908589659

../../_images/source_examples_vector_vector_grating_xy_27_1.png

[28]:

E_pypol.parameters.ellipticity_angle(draw=True)

The ellipticity angle of E is (deg.):
The mean value is 0.0023139875247736204 +- 16.298382119244877

../../_images/source_examples_vector_vector_grating_xy_28_1.png

[29]:

E_pypol.parameters.degree_circular_polarization(draw=True)

The degree of circular polarization of E is:
The mean value is 4.642698262044434e-05 +- 0.4827440792079989

../../_images/source_examples_vector_vector_grating_xy_29_1.png
