9.11. Diffraction grating for vector beams: XZ frame

from diffractio import np, plt
from diffractio import degrees, um
from diffractio.scalar_masks_XZ import Scalar_mask_XZ
from diffractio.scalar_sources_X import Scalar_source_X

from diffractio.vector_fields_XZ import Vector_field_XZ

from py_pol.jones_vector import Jones_vector

scale='auto'

period = 2*um
wavelength = .5 * um
z_talbot = 2*period**2/wavelength
print(z_talbot)

x0 = np.linspace(- 0, 2*period, 1024)
z0 = np.linspace(-2 * um, 1*z_talbot, 1024)

u0 = Scalar_source_X(x=x0, wavelength=wavelength)
u0.plane_wave(theta = 0*degrees)

u_xz = Scalar_mask_XZ(x=x0, z=z0, wavelength=wavelength, n_background=1)
u_xz.incident_field(u0)

u_xz.ronchi_grating(r0=(0*um, 0*um), period=period, fill_factor=0.5,
                    height = 1*wavelength, refractive_index=1.5, length = 32*wavelength, Dx = 0,
                    heigth_substrate = 1*um,
                    refractive_index_substrate=1.5, angle=0)

u_xz.draw_refractive_index(scale=scale, draw_borders=False, colorbar_kind='horizontal')

16.0

j0 = Jones_vector().general_azimuth_ellipticity(azimuth=45*degrees, ellipticity=0*degrees)
print(j0)

E =
[+0.707]
[+0.707]

EH_xz = Vector_field_XZ(x0,z0, wavelength)
EH_xz.refractive_index_from_scalarXZ(u_xz)
EH_xz.incident_field(u0=u0, j0=j0)

EH_xz.FP_WPM(has_edges=False, verbose=False)

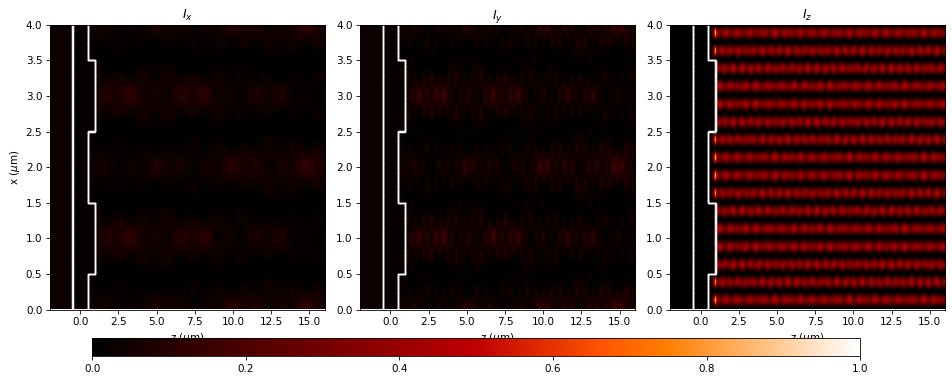

EH_xz.draw('intensities', logarithm=0,  scale=scale, ms=.5)

EH_xz.draw('phases', scale=scale, ms=.5)

EH_xz.draw('fields', logarithm=False, scale=scale, ms=.5)

EH_xz.draw('EH', logarithm=False, scale=scale, color='k.')

P_vector = EH_xz.draw('poynting_vector', scale=scale, color='k.')

EH_xz.draw('poynting_vector_averaged', scale=scale, color='k.')

Irr= EH_xz.draw('irradiance', mode='modulus', scale=scale, color='w.', ms=.5)

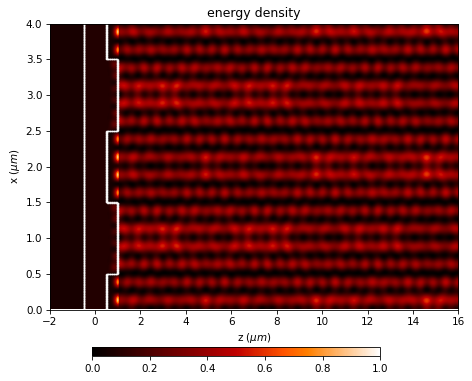

EH_xz.draw('energy_density', scale=scale, color='w.', ms=.5)

Irr= EH_xz.draw('stokes', scale=scale, color='w.', ms=.5)
