10.2. Add surfaces to an object

Here, we show a procedure to add an structured surface to an object. The surafaces are to lenses. The first one is an Frsnel lens, and the second surface is an stardard lens.

Two examples are performed. Add the surfaces to a layer and to a biprism

[36]:

from diffractio import sp, nm, plt, np, mm, degrees, um
from diffractio.scalar_sources_X import Scalar_source_X
from diffractio.scalar_masks_XZ import Scalar_mask_XZ
from diffractio.scalar_masks_X import Scalar_mask_X

[37]:

x0 = np.linspace(-.15*mm, .15*mm, 1024)
z0 = np.linspace(-25*um, 400*um, 512)
wavelength = 5*um
n_background = 1

[38]:

u0 = Scalar_source_X(x0, wavelength)
u0.plane_wave()

10.2.1. Surfaces

[39]:

surface_1 = Scalar_mask_X(x0, wavelength, n_background=1, info='')

h1 = surface_1.fresnel_lens(x0=0.0,
                            focal=.25*mm,
                            binary=True,
                            kind='phase',
                            phase=sp.pi/2,
                            radius=1*mm)

plt.figure(figsize=(6, 2))
plt.plot(surface_1.x, h1.real)

../../_images/source_functioning_surfaces_5_0.png

[40]:

surface_2 = Scalar_mask_X(x0, wavelength, n_background=1, info='')
h2 = surface_2.fresnel_lens(x0=0.0,
                            focal=.25*mm,
                            binary=False,
                            kind='phase',
                            phase=sp.pi/2,
                            radius=1*mm)

plt.figure(figsize=(6, 2))
plt.plot(surface_2.x, h2.real)

../../_images/source_functioning_surfaces_6_0.png

[41]:

surface_3 = Scalar_mask_X(x0, wavelength, n_background=1, info='')
h3 = surface_3.roughness(t=.25*um, s=1*um)

plt.figure(figsize=(6, 2))
plt.plot(surface_3.x, h3.real)

../../_images/source_functioning_surfaces_7_0.png

[42]:

fx1 = surface_1.x, h1 * wavelength
fx2 = surface_2.x, h2 * wavelength
fx3 = surface_3.x, h3 * wavelength

10.2.2. Layer

[43]:

layer = Scalar_mask_XZ(x0, z0, wavelength, n_background=n_background, info='')
#lente3.biprism(r0=(0*um, 0*um), length=.3*mm, height=.25*mm, refractive_index=1.5);
layer.layer(r0=(0*mm, 50*um),
            refractive_index=1.5,
            depth=100*um,
            angle=0)
layer.draw_refractive_index()

../../_images/source_functioning_surfaces_10_0.png

[44]:

layer.add_surfaces(fx=(fx1, fx2),
                   refractive_index=1.5,
                   x_sides=[-1*mm, 1*mm],
                   min_incr=0.1,
                   angle=0*degrees)

[45]:

layer.draw_refractive_index(draw_borders=False)

borders = layer.borders

layer.smooth_refractive_index(pixels_filtering=2*um,
                              draw_check=False,
                              max_diff_filter=0.1)

../../_images/source_functioning_surfaces_12_0.png

Propagation

[46]:

layer.incident_field(u0)

[47]:

layer.clear_field()
layer.BPM(verbose=True, has_edges=False)

Time = 0.12 s, time/loop = 0.2291 ms

[48]:

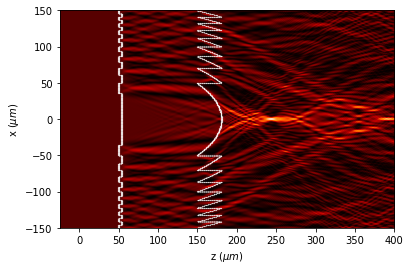

layer.draw(logarithm=1e0, normalize='maximum', draw_borders=True, edge_matrix=borders)

../../_images/source_functioning_surfaces_16_0.png

10.2.3. Biprism

[73]:

biprism = Scalar_mask_XZ(x0,
                         z0,
                         wavelength,
                         n_background=n_background,
                         info='')
biprism.biprism(r0=(0*um, 0*um),
                length=.3*mm,
                height=.1*mm,
                refractive_index=1.5)
biprism.draw_refractive_index()
borders = biprism.borders

../../_images/source_functioning_surfaces_18_0.png

[74]:

biprism.incident_field(u0)

[75]:

biprism.clear_field()
biprism.BPM(verbose=True, has_edges=False)
biprism.draw(logarithm=1e0,  draw_borders=True, edge_matrix=borders)

Time = 0.12 s, time/loop = 0.2382 ms

../../_images/source_functioning_surfaces_20_1.png

[76]:

biprism.add_surfaces(fx=(fx3, fx1),
                     refractive_index=1.5,
                     x_sides=[-1*mm, 1*mm],
                     min_incr=0.1,
                     angle=0*degrees)

[77]:

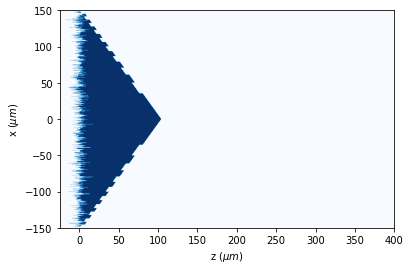

biprism.draw_refractive_index(draw_borders=False)
borders = biprism.borders

../../_images/source_functioning_surfaces_22_0.png

[78]:

biprism.smooth_refractive_index(pixels_filtering=2*um,
                                draw_check=False,
                                max_diff_filter=0.1)

Propagation

[79]:

biprism.clear_field()
biprism.BPM(verbose=True, has_edges=False)

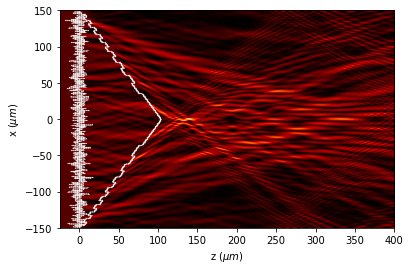

biprism.draw(logarithm=1e0,  draw_borders=True, edge_matrix=borders)

Time = 0.15 s, time/loop = 0.2861 ms

../../_images/source_functioning_surfaces_25_1.png
